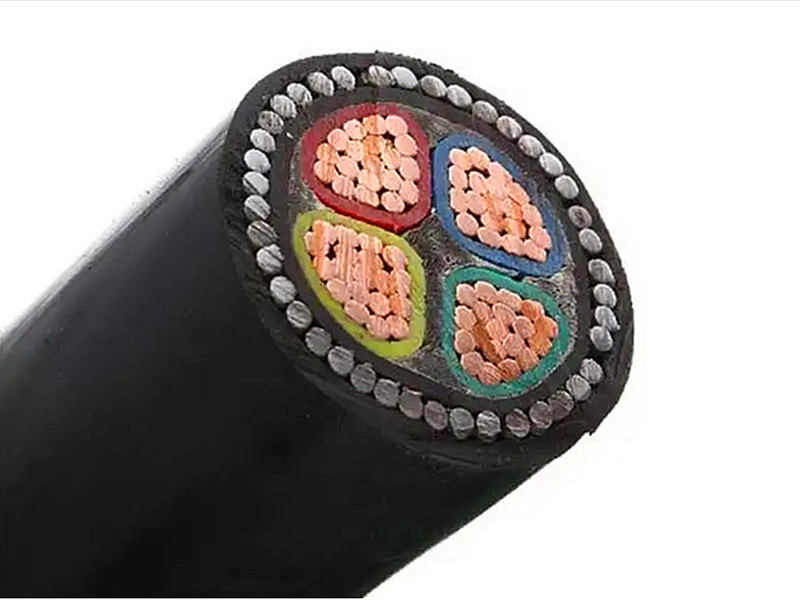

4 Core Armoured Cable Copper Cu/XLPE/PVC/SWA/PVC BS5467 0.6/1kV

4 Core Armoured Cable Copper XLPE PVC SWA 0.6/1kV

Voltage Rating: 600/1000 Volts,

Conductor: soft annealed copper

Insulation: Cross Linked Poly Ethylene (XLPE)

Armour: Steel Wire Armoured

Oversheath: PVC

Email: manager@hdcable.com.cn

Send message Whatsapp

Share with:

DEFINITION CONSTRUCTION TECHNICAL DATA PARAMETER

4 Core SWA Armoured Cable Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

4 Core SWA Armoured Cable Standard

BS 5467 IEC 60502-1.

CONSTRUCTION :

4 Core SWA Armoured Cable Construction

Conductor	Plain cicrcular, compacted or shaped stranded copper or aluminum conductor, conform to IEC 60228 class 2
Insulation	XLPE (cross-linked polyethylene), rated at 90°C
Bedding	PVC (Polyvinyl Chloride)
Armour	SWA (Galvanized Steel Wire Armour)
Sheath	PVC (Polyvinyl Chloride)
Rated Voltage	600/1000V

TECHNICAL DATA :

4 Core SWA Armoured Cable Technical Data

STANDARD IEC 60502-1, BS 5467 and BS 6346

APPLICATION Distribution networks, Industrial use

CHEMICAL PERFORMANCE Chemical & Oil resistance: Good

MECHANICAL PERFORMANCE Minimum bending raduis: x15cable diameter (unarmoured)
Minimum bending raduis: x20 cable diameter (armoured)

FIRE PERFORMANCE Flame non-propagation base on IEC 60332-1
Reduced emission of Halogens chlorine<15%

TERMINAL PERFORMANCE Maximum service temperature: 90°C
Maximum short-circuit temperature: 150°C(max. 5s)
Minimum service temperature: -40°C

PARAMETER :

4 Core SWA Armoured Cable XLPE Insulated Parameter

Type	Specification	Outer diameter	Nominal thickness of insulation	Diameter of steel wire	Nominal sheath thickness	Approx. Outer diameter of cable	Approx. Weight of cable		Ampacity of cable
							Approx. Weight of cable		Air		Soil
							CU	AL	Cu	Al	Cu	Al
XLPE/SWA	mm2	mm	mm	mm	mm	mm	kg/km	kg/km	A	A	A	A
	4×4 RE	2.24	0.7	1.25	1.8	19.1	770	670	37	28	46	35
	4×6 RE	2.76	0.7	1.25	1.8	20.3	916	772	47	37	56	46
	4×10 CC	3.8	0.7	1.6	1.8	22.3	1148	895	64	47	76	56
	4×16 CC	4.8	0.7	1.6	1.8	24.5	1472	1070	84	64	98	76
	4×25 CC	6.0	0.9	1.6	1.8	27.5	1942	1317	115	84	126	98
	4×35 CC	7.0	0.9	1.6	1.8	29.5	2386	1521	141	115	152	126
	4×50 SM	8.0	1.0	2.0	1.9	32.9	3209	2036	172	141	181	152
	4×70 SM	9.5	1.1	2.0	2.1	36.7	4197	2502	218	172	222	181
	4×95 SM	11.0	1.1	2.0	2.3	40.5	5362	3016	269	218	267	222
	4×120 SM	12.4	1.2	2.5	2.4	45.3	6908	3940	313	269	305	267
	4×150 SM	13.8	1.4	2.5	2.6	50.0	8327	4683	359	313	344	305
	4×185 SM	15.4	1.6	2.5	2.7	54.2	10044	5466	405	359	383	344
	4×240 SM	17.5	1.7	2.5	2.9	60.4	12672	6666	451	405	442	383
	4×300 SM	19.6	1.8	2.5	3.1	65.7	15302	7795	497	451	461	422

Note: RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded
