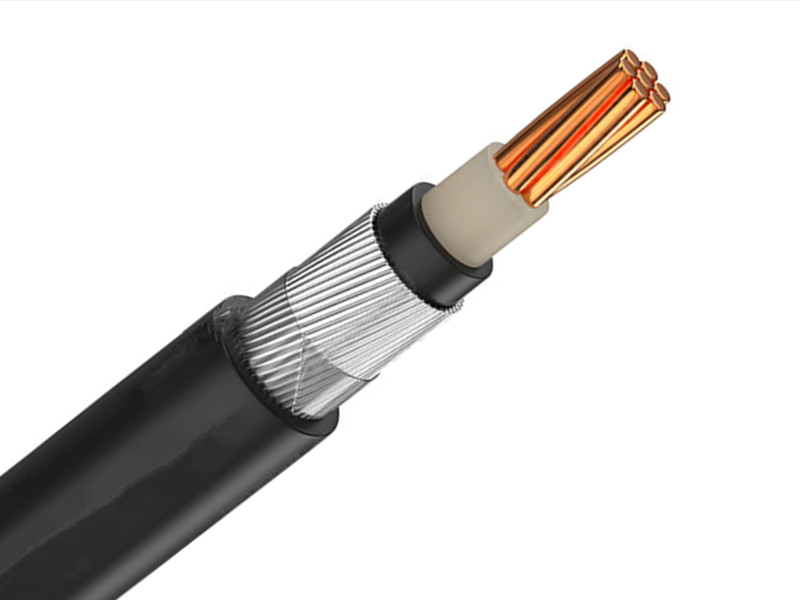

70mm2 Single Core armoured cable XLPE/PVC/AWA/PVC IEC 60502-1 0.6/1kV
Rated Voltage: 600/1000 Volts,
Conductor: Copper or Aluminum
Insulation: Cross Linked Poly Ethylene (XLPE)
Armour: Aluminum Wire Armour
Oversheath: PVC or LSZH
Email: manager@hdcable.com.cn
Single core PVC cable with aluminium wire armour (AWA).Power and auxiliary fixed wiring cables for use in powernetworks, underground, outdoor and indoor applications andfor use in cable ducting.
Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor (Conductor shaped: RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded)
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Color identification
1 Core : Red or Black, 2 Cores : Red, Black, 3 Cores: Red, Yellow, Blue , 4 Cores: Red, Yellow, Blue, Black, 5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
*The above identifying can be changed as user requirement
Assembly /Inner Sheath:Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour: Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Sheath:Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.
Fire Performance of Cable Sheaths
Specification |
Outer diameter of conductor |
Nominal thickness of insulation |
Diameter of aluminium wire |
Nominal sheath thickness |
Approx.outer diameter of cable |
Approx. Weight of cable |
Ampacity of cable |
||||
Air |
Soil |
||||||||||
CU |
AL |
Cu |
Al |
Cu |
Al |
||||||
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
kg/km |
A |
A |
A |
A |
1×4 RE |
2.24 |
0.7 |
1.25 |
1.8 |
16.9 |
228 |
204 |
45 |
35 |
60 |
50 |
1×6 RE |
2.76 |
0.7 |
1.25 |
1.8 |
16.9 |
258 |
222 |
55 |
45 |
70 |
50 |
1×10 CC |
3.8 |
0.7 |
1.25 |
1.8 |
16.9 |
321 |
261 |
75 |
60 |
95 |
75 |
1×16 CC |
4.8 |
0.7 |
1.25 |
1.8 |
17.0 |
357 |
255 |
100 |
80 |
125 |
100 |
1×25 CC |
6.0 |
0.9 |
1.25 |
1.8 |
17.4 |
482 |
323 |
140 |
115 |
160 |
130 |
1×35 CC |
7.0 |
0.9 |
1.25 |
1.8 |
18.4 |
597 |
375 |
175 |
140 |
190 |
150 |
1×50 CC |
8.4 |
1.0 |
1.6 |
1.8 |
19.6 |
788 |
487 |
210 |
170 |
225 |
180 |
1×70 CC |
10.0 |
1.1 |
1.6 |
1.8 |
21.5 |
1032 |
598 |
270 |
215 |
280 |
225 |
1×95 CC |
11.5 |
1.1 |
1.6 |
1.8 |
23.1 |
1319 |
718 |
340 |
275 |
335 |
270 |
1×120 CC |
13.0 |
1.2 |
2.0 |
1.8 |
24.7 |
1657 |
892 |
400 |
320 |
380 |
305 |
1×150 CC |
14.5 |
1.4 |
2.0 |
1.8 |
26.7 |
1960 |
1048 |
460 |
370 |
425 |
340 |
1×185 CC |
16.2 |
1.6 |
2.0 |
1.8 |
28.8 |
2375 |
1205 |
530 |
415 |
480 |
375 |
1×240 CC |
18.4 |
1.7 |
2.0 |
1.8 |
31.6 |
3004 |
1467 |
625 |
490 |
555 |
435 |
1×300 CC |
20.5 |
1.8 |
2.0 |
1.9 |
34.2 |
3655 |
1722 |
720 |
565 |
630 |
495 |
1×400 CC |
23.5 |
2.0 |
2.5 |
2.0 |
39.3 |
4725 |
2245 |
815 |
640 |
705 |
555 |
1×500 CC |
26.5 |
2.2 |
2.5 |
2.2 |
44.3 |
5837 |
2686 |
855 |
680 |
765 |
595 |
1×630 CC |
30.0 |
2.4 |
2.5 |
2.3 |
50.4 |
7326 |
3271 |
980 |
790 |
860 |
680 |
Max. Permissible D.C. resistance of conductor at 20℃
Nominal section area(mm2) | Copper conductor(Ω/km) | Aluminum conductor(Ω/km) |
1.5 | 12.1 | - |
2.5 | 7.41 | 12.1 |
4 | 4.61 | 7.41 |
6 | 3.08 | 4.61 |
10 | 1.83 | 3.08 |
16 | 1.15 | 1.91 |
25 | 0.727 | 1.2 |
35 | 0.524 | 0.868 |
50 | 0.387 | 0.641 |
70 | 0.268 | 0.443 |
95 | 0.193 | 0.32 |
120 | 0.153 | 0.253 |
150 | 0.124 | 0.206 |
185 | 0.0991 | 0.164 |
240 | 0.0754 | 0.125 |
300 | 0.0601 | 0.1 |
400 | 0.047 | 0.0778 |
500 | 0.0366 | 0.0605 |
630 | 0.0283 | 0.0469 |
