Armoured Instrumentation Cable PE-IS-OS-SWA-PVC BS 5308 Cable Part 1 Type 1 Application:

The BS 5308 Part 1 Type 2 Cables with individually and collectively screen and steel wire armouring are generally used when the risk of mechanical damage is increased. The galvanized steel wire armouring provides excellent protection. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in chemical or petrol-chemical industry. The armored versions are generally use for outdoor installation for direct burial or installed in the duct and suitable for wet and damp areas.

Armoured Instrumentation Cable PE-IS-OS-SWA-PVC BS 5308 Cable Part 1 Type 1 Standard:

Cable design: BS 5308 BS EN 50288-7
Conductor: IEC 60228

CONSTRUCTION :

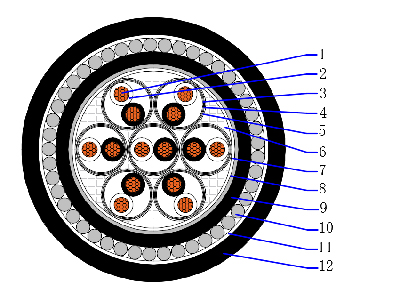

Armoured Instrumentation Cable PE-IS-OS-SWA-PVC BS 5308 Cable Part 1 Type 1 Construction

1.Conductor - Annealed or tinned copper, sizes: 0.5mm^2 and 0.75mm^2 mulitistranded(Class 5), 1.5mm^2 multistranded(Class 2) to BS6360
2.Insulation - PE (Polyethylene)

Pairing -Two insulated conductors uniformly twisted together with a lay not exceeding 100mm

Color Code-Black and white

3.Binder tape -PETP transparent tape

4.Individual screen-Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm^2
5.Binder tape - Polyester tape
6.Filler - Non-hygroscopic material (if necessary)
7.Binder tape - PETP transparent tape
8.Collective Screen - Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm^2

9.Inner sheath - Polyvinyl chloride compound (PVC)

10.Armor - Galvanized steel wires

11.Binder tape - Non-hygroscopic material tape
12.Outer sheath - PVC Sheath, type TM 1 or type 6 to BS 6746

Sheath Color-Black or blue

TECHNICAL :

Conductor operating temperature: -20℃~70℃

Min. installation temperature: 0℃

Minimum bending radius: 5 x overall diameter

Conductor Area Size		mm 2	0.5	0.75	1.5
Conductor Stranding		No. x mm	16 x 0.2	24 x 0.2	7 x 0.53
Conductor resistance max		ohm/km	39.7	26.5	12.3
Insulation resistance min		Mohm/km	25	25	25
Max. Mutual Capacitance:pair or adjacent cores		pF/m	250	250	250
Capacitance between any core or screen max.		pF/m	400	400	400
Max. L/R Ratio for adjacentcores(Inductance/Resistance)		μH/ohm	25	25	40
Test voltage	Core to core	V	1000	1000	1000
	Core to screen	V	1000	1000	1000
Rated voltage max		V	300/500	300/500	300/500

PARAMETER :

Armoured Instrumentation Cable PE-IS-OS-SWA-PVC BS 5308 Cable Part 1 Type 1 Parameter

No.of Pairs No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath Nominal Dia. of Cable Approx. Weight

no./mm mm^2 mm mm mm mm mm mm kg/km

2 16/0.2 0.5 0.6 0.8 10.6 0.9 1.3 15 505

5 16/0.2 0.5 0.6 1.1 14.3 0.9 1.5 19.1 830

10 16/0.2 0.5 0.6 1.2 19.1 1.25 1.6 24.8 1420

15 16/0.2 0.5 0.6 1.3 22.2 1.6 1.7 28.8 1570

20 16/0.2 0.5 0.6 1.3 25.3 1.6 1.8 32.1 2040

30 16/0.2 0.5 0.6 1.5 30.6 1.6 1.9 37.6 2610

50 16/0.2 0.5 0.6 1.7 38.9 2 2.1 47.1 4270

2 24/0.2 0.75 0.6 0.8 11.5 0.9 1.4 16.1 545

5 24/0.2 0.75 0.6 1.2 15.7 1.25 1.5 21.2 1005

10 24/0.2 0.75 0.6 1.3 20.9 1.6 1.7 27.5 1400

15 24/0.2 0.75 0.6 1.3 24.2 1.6 1.8 31 1750

20 24/0.2 0.75 0.6 1.5 27.9 1.6 1.8 34.7 2300

30 24/0.2 0.75 0.6 1.7 33.8 2 2 41.8 2460

50 24/0.2 0.75 0.6 2 43.1 2.5 2.3 52.7 4800

2 7/0.53 1.5 0.6 0.9 13 0.9 1.4 17.6 800

5 7/0.53 1.5 0.6 1.2 17.5 1.25 1.6 23.2 1290

10 7/0.53 1.5 0.6 1.3 23.5 1.6 1.8 30.3 1990

15 7/0.53 1.5 0.6 1.5 27.6 1.6 1.9 34.6 2590

20 7/0.53 1.5 0.6 1.5 31.3 1.6 2 38.5 3310

30 7/0.53 1.5 0.6 1.7 38 2 2.1 46.2 4380

50 7/0.53 1.5 0.6 2 48.5 2.5 2.4 58.3 6260

No.of Pairs	No.and Dia. of Wires	Nominal Conductor Cross-Sectional Area	Nominal Thickness of Insulation	Nominal Thickness of bedding	Nominal Dia. over Bedding	Nominal Thickness of Armour	Nominal Thickness of Sheath	Nominal Dia. of Cable	Approx. Weight
No.of Pairs	no./mm	mm^2	mm	mm	mm	mm	mm	mm	kg/km
2	16/0.2	0.5	0.6	0.8	10.6	0.9	1.3	15	505
5	16/0.2	0.5	0.6	1.1	14.3	0.9	1.5	19.1	830
10	16/0.2	0.5	0.6	1.2	19.1	1.25	1.6	24.8	1420
15	16/0.2	0.5	0.6	1.3	22.2	1.6	1.7	28.8	1570
20	16/0.2	0.5	0.6	1.3	25.3	1.6	1.8	32.1	2040
30	16/0.2	0.5	0.6	1.5	30.6	1.6	1.9	37.6	2610
50	16/0.2	0.5	0.6	1.7	38.9	2	2.1	47.1	4270
2	24/0.2	0.75	0.6	0.8	11.5	0.9	1.4	16.1	545
5	24/0.2	0.75	0.6	1.2	15.7	1.25	1.5	21.2	1005
10	24/0.2	0.75	0.6	1.3	20.9	1.6	1.7	27.5	1400
15	24/0.2	0.75	0.6	1.3	24.2	1.6	1.8	31	1750
20	24/0.2	0.75	0.6	1.5	27.9	1.6	1.8	34.7	2300
30	24/0.2	0.75	0.6	1.7	33.8	2	2	41.8	2460
50	24/0.2	0.75	0.6	2	43.1	2.5	2.3	52.7	4800
2	7/0.53	1.5	0.6	0.9	13	0.9	1.4	17.6	800
5	7/0.53	1.5	0.6	1.2	17.5	1.25	1.6	23.2	1290
10	7/0.53	1.5	0.6	1.3	23.5	1.6	1.8	30.3	1990
15	7/0.53	1.5	0.6	1.5	27.6	1.6	1.9	34.6	2590
20	7/0.53	1.5	0.6	1.5	31.3	1.6	2	38.5	3310
30	7/0.53	1.5	0.6	1.7	38	2	2.1	46.2	4380
50	7/0.53	1.5	0.6	2	48.5	2.5	2.4	58.3	6260
