AS/NZS 4961 Aluminum Neutral Screen Cable Application

Industrial, commerical and domestic applications.

For use in various situations to supply the main power from the point of supply to buildings, equipment shed, e.g. switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc.

AS/NZS 4961 Aluminum Neutral Screen Cable Standard

AS/NZS 4961

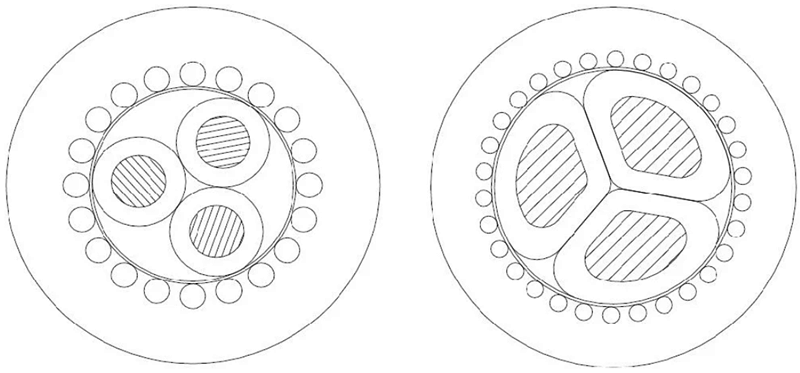

CONSTRUCTION :

1.Phase conductor: Aluminum
2.Insulation :XLPE
Insulation color : Blue, Red and White
3.Neutral conductor :Copper Wire
4.Sheathed:PVC (XLPE/PE) sheath

CHARACTER :

AS/NZS 4961 Aluminum Neutral Screen Cable Character

Type of conductor	Sector-shaped, stranded
Conductor material	Aluminum
Insulation	XLPE
Screen	Copper wire
Outer sheath	PVC
Rated Voltage Uo/U (Um)	0.6/ 1 (1.2) kV
Max. conductor temperature in service	90°C

PARAMETER :

Conductor		Nom.insulation thickness	Screen		Nom.sheath thickness	Approx. diameter of cable	Approx cable weight	DC Conductor Resistance @20ºC During Installation
Size	Nom.diameter	Nom.insulation thickness	Nom.diameter of wire	Calculated area	Nom.sheath thickness	Approx. diameter of cable	Approx cable weight	DC Conductor Resistance @20ºC During Installation
mm2	mm	mm	mm	mm2	mm	mm	kg/km	Ω/km
3Cx35	7.1	0.9	0.85	25	3.2	27.8	1070	0.868
3Cx50	6.9*12.1	1.0	0.85	28	3.2	28.6	1190	0.641
3Cx70	8.4*14.7	1.1	1.13	41	3.2	32.7	1560	0.443
3Cx95	10.0*17.5	1.1	1.13	58	3.2	36.2	2040	0.320
3Cx120	11.3*19.2	1.2	1.53	84	3.2	40.2	2620	0.253
3Cx150	12.6*21.4	1.4	1.53	93	3.2	43.7	3050	0.206
3Cx185	14.1*24.0	1.6	1.53	117	3.2	47.9	3720	0.164
3Cx240	16.3*26.9	1.7	2.03	148	3.2	53.9	4700	0.125
3Cx300	18.3*30.2	1.8	2.01	184	3.2	58.6	5650	0.100
