Cable NF C 32-321 U-1000 Ar2V AL Unarmoured Aluminium Cable for Industrial

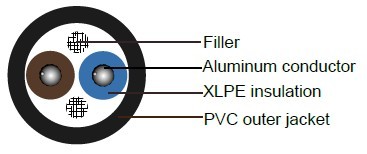

Conductor: Aluminum
Insulation : XLPE
Sheath: Polyvinylchloride compound PVC 5V-90
Voltage : 0.6/1kV
Number of cores: Multi Core
Package : Export wooden drum & iron wooden drum or as customer require
Email: manager@hdcable.com.cn
| U-1000 AR2V - Technical data and tests | |
| Standards | : NF C 32-321 C32-321/A1; IEC 60502-1 NF EN 60332-1-2; NF C 15-100 |
| Nominal voltage U0/U | : 0,6/1 kV |
| Test voltage (50 Hz) | : 4 kV |
| Maximun voltage Um | : 1,2 kV |
| Maximun operating temperature | : +90° C |
| Maximun short circuit temperature | : +250° C |
| Min. operating temperature (without mechanical shocks) |
: -25° C |
| Minimum installation and use temp. | : -10° C |
| Minimum bending radius per D cable diameter (in mm) |
: 6 x D |
| Maximum pulling stress | : 5 kg/mm² (of copper cross section) |
| Sheath colour | : black |
| AWG | CROSS SECTION MM2 | INSULATION THICKNESS MM | MINIMUM SHEATH THICKNESS MM | MAXIMUM OVERALL DIAMETER MM | APPROX CABLE WEIGHT KG/KM |
|---|---|---|---|---|---|
| 2 | 1x35 | 0.9 | 1.09 | 13.5 | 190 |
| 1 | 1x50 | 1 | 1.09 | 15 | 245 |
| 2/0 | 1x70 | 1.1 | 1.09 | 17 | 325 |
| 3/0 | 1x95 | 1.1 | 1.18 | 19 | 425 |
| 4/0 | 1x120 | 1.2 | 1.18 | 21 | 520 |
| 300MCM | 1x150 | 1.4 | 1.26 | 23 | 630 |
| 500MCM | 1x185 | 1.6 | 1.26 | 25.5 | 780 |
| 750MCM | 1x240 | 1.7 | 1.35 | 28.5 | 990 |
| - | 1x300 | 1.8 | 1.43 | 31 | 1210 |
| - | 1x400 | 2 | 1.52 | 34.2 | 1510 |
| - | 1x500 | 2.2 | 1.6 | 38 | 1860 |
| - | 1x630 | 2.4 | 1.77 | 44 | 2400 |
| 8 | 2x10 | 0.7 | 1.43 | 16,0 | 275 |
| 6 | 2x16 | 0.7 | 1.43 | 18,5 | 360 |
| 4 | 2x25 | 0.9 | 1.43 | 22,0 | 530 |
| 2 | 2x35 | 0.9 | 1.43 | 24,5 | 640 |
| 8 | 3x10 | 0.7 | 1.43 | 17,0 | 300 |
| 6 | 3x16 | 0.7 | 1.43 | 19,5 | 400 |
| 4 | 3x25 | 0.9 | 1.43 | 23,5 | 600 |
| 2 | 3x35 | 0.9 | 1.43 | 26,0 | 750 |
| 1 | 3x50 | 1 | 1.43 | 29,0 | 970 |
| 2/0 | 3x70 | 1.1 | 1.52 | 34,0 | 1310 |
| 3/0 | 3x95 | 1.1 | 1.6 | 38,5 | 1730 |
| 4/0 | 3x120 | 1.2 | 1.69 | 42,5 | 2120 |
| 300MCM | 3x150 | 1.4 | 1.86 | 47,5 | 2640 |
| 500MCM | 3x185 | 1.6 | 1.94 | 53,0 | 3290 |
| 750MCM | 3x240 | 1.7 | 2.11 | 59,5 | 4210 |
| 3x300 | 1.8 | 2.28 | 66,0 | 5210 | |
| 4 | 4x25 | 0.9 | 1.43 | 25,5 | 720 |
| 2 | 4x35 | 0.9 | 1.43 | 28,5 | 910 |
| 1 | 3x50+35 | 1 | 1.52 | 31,1 | 1130 |
| 2/0 | 3x70+50 | 1.1 | 1.6 | 36,2 | 1540 |
| 3/0 | 3x95+50 | 1.1 | 1.69 | 40,6 | 1940 |
| 4/0 | 3x120+70 | 1.2 | 1.86 | 45,4 | 2430 |
| 300MCM | 3x150+70 | 1.4 | 1.94 | 49,5 | 2890 |
| 500MCM | 3x185+70 | 1.6 | 2.11 | 54,4 | 3660 |
| 750MCM | 3x240+95 | 1.7 | 2.28 | 61,5 | 4680 |
