Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage

Standards:

IEC 60502-1, GB/T 12706.1
Note: we can aslo manufacture cables according to BS 5467, AS/NZS 5000.1

Construction

Conductor:Aluminum/plain annealed copper
Insulation : PVC(Polyvinyl chloride), rated at 70°C
Colours for core identification
Single core: black or brown
Two core: red, blue or blue brown
Three core: red, yellow and blue or brown black grey
Four core: red, yellow, blue and green or blue brown black grey
Five core: red, yellow, blue, yellow and yellow/green or blue brown black grey yellow/green

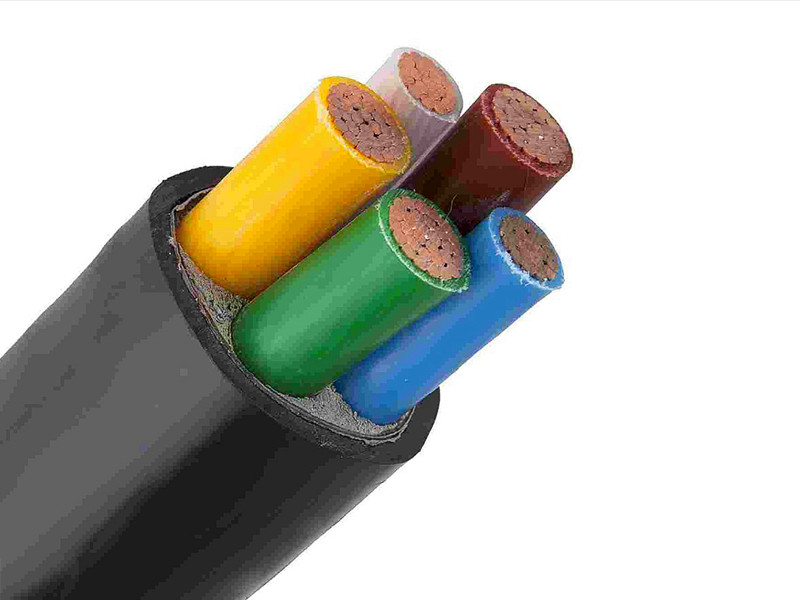

Assembly(for multi-cores cables)

Two, three, four or five insuated conductors are laid up together if necessary filled with non-hygroscopic material compatble with the insulation and covered with a layer of PVC bedding which maybe an integral part of the filling

Sheath:PVC
Sheath colour:Black, other colors are available upon request

2 CORE :

Two Cores Non-Armored XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
					Weight of Cable (Approx.)
					Copper	Aluminum
mm2	mm	mm	mm	mm	kg/km	kg/km
2x1.5	1.38	0.7	1.8	9.76	111.0	--
2x2.5	1.78	0.7	1.8	10.56	136.2	106.3
2x4	2.25	0.7	1.8	11.5	182.1	133.5
2x6	2.76	0.7	1.8	12.52	226.6	--
*2x6	2.83	0.7	1.8	12.66	--	159.2
2x10	4.05	0.7	1.8	15.1	338.4	216.3
2x16	5.1	0.7	1.8	17.2	479.8	285.4
2x25	5.9	0.9	1.8	19.6	664.4	360.4
2x35	6.9	0.9	1.8	21.6	869.0	445.3
2x50	9.37	1	1.8	19.4	1037.2	464.0
2x70	11.2	1.1	1.8	22.1	1455.6	620.7
2x95	13.23	1.1	1.9	24.8	1958.6	806.0
2x120	14.92	1.2	2	27.2	2451.4	993.5
2x150	16.44	1.4	2.2	30.7	3046.7	1258.6
2x185	18.49	1.6	2.3	33.7	3788.9	1548.5
2x240	21.4	1.7	2.5	38.9	4941.0	1974.0
2x300	24.1	1.8	2.6	42.7	6125.0	2417.0
2x400	27.2	2.0	2.9	48.1	7837.0	3071.0
2x500	31.0	2.2	3.1	53.6	10010.0	3882.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

3 CORE :

Three Cores Non-Armored XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
					Weight of Cable (Approx.)
					Copper	Aluminum
mm2	mm	mm	mm	mm	kg/km	kg/km
3x1.5	1.38	0.7	1.8	10.2	130.4	--
3x2.5	1.78	0.7	1.8	11.1	168.3	123.5
3x4	2.25	0.7	1.8	12.1	224.3	151.4
3x6	2.76	0.7	1.8	13.2	290.3	-
*3x6	2.83	0.7	1.8	13.3	-	188.7
3x10	4.05	0.7	1.8	16.0	439.7	256.5
3x16	5.1	0.7	1.8	18.2	632.7	341.1
3x25	5.9	0.9	1.8	20.8	912.0	456.0
3x35	6.9	0.9	1.8	23.0	1206.6	571.1
3x50	9.34	1.0	1.8	25.4	1531.8	672.0
3x70	11.22	1.1	1.9	28.8	2165.7	913.4
3x95	13.16	1.1	2.0	32.4	2916.8	1187.9
3x120	14.76	1.2	2.1	35.3	3648.4	1461.5
3x150	16.34	1.4	2.3	38.7	4505.3	1823.2
3x185	18.3	1.6	2.4	42.4	5605.7	2245.1
3x240	20.92	1.7	2.6	47.2	7236.8	2825.7
3x300	23.38	1.8	2.7	51.5	8986.0	3472.2
3x400	26.46	2.0	3.0	57.5	11593.7	4444.4
3x500	30.0	2.2	3.2	64.3	14809.0	5617.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

3+1 CORE :

Three Cores Non-Armored XLPE Cable With One Neutral Core
Cross Section		Conductor Dia. (Approx.)		XLPE Insulation Thickness		PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
								Weight of Cable (Approx.)
								Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth			Copper	Aluminum
mm2	mm2	mm	mm	mm	mm	mm	mm	kg/km	kg/km
3x2.5	1x1.5	1.78	1.38	0.7	0.7	1.8	11.7	189.9	--
3x4	1x2.5	2.25	1.78	0.7	0.7	1.8	12.7	256.8	169.0
3x6	1x4	2.76	2.25	0.7	0.7	1.8	14.0	339.1	--
*3x6	*1x4	2.83	2.25	0.7	0.7	1.8	14.1	--	213.0
3x10	1x6	4.05	2.76	0.7	0.7	1.8	16.6	506.2	--
*3x10	*1x6	4.05	2.83	0.7	0.7	1.8	16.7	--	289.1
3x16	1x10	5.1	4.05	0.7	0.7	1.8	19.3	742.5	389.9
3x25	1x16	5.9	5.1	0.9	0.7	1.8	22.1	1084.9	531.7
3x35	*1x16	6.9	5.1	0.9	0.7	1.8	23.9	1373.6	640.9
3x50	1x25	9.1	5.9	1.0	0.9	1.8	25.4	1786.6	774.8
3x70	1x35	10.94	6.9	1.1	0.9	1.8	29.4	2506.1	1041.9
3x95	1x50	12.91	9.0	1.1	1.0	1.8	32.8	3360.4	1344.9
3x120	1x70	14.51	10.83	1.2	1.1	1.9	36.0	4292.7	1688.4
3x150	*1x70	16.11	10.83	1.4	1.1	2.1	39.4	5122.4	2022.9
3x185	1x95	18.04	12.17	1.6	1.1	2.2	43.3	6452.9	2516.0
3x240	1x120	20.65	14.39	1.7	1.2	2.3	48.4	8332.4	3192.4
3x300	1x150	23.08	15.93	1.8	1.4	2.5	53.3	10335.0	3927.2
3x400	1x185	25.49	17.77	2.0	1.6	2.7	59.4	13251.3	4981.8
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

4 CORE :

Four Cores Non-Armored XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
					Weight of Cable (Approx.)
					Copper	Aluminum
mm2	mm	mm	mm	mm	kg/km	kg/km
4x1.5	1.4	0.7	1.8	10.9	156.5	--
4x2.5	1.8	0.7	1.8	11.9	202.3	142.5
4x4	2.3	0.7	1.8	13.0	269.8	172.6
4x6	2.8	0.7	1.8	14.3	360.9	--
*4x6	2.8	0.7	1.8	14.4	--	225.1
4x10	4.1	0.7	1.8	17.4	551.7	307.5
4x16	5.1	0.7	1.8	19.9	802.2	413.5
4x25	5.9	0.9	1.8	22.8	1157.2	549.1
4x35	6.9	0.9	1.8	25.3	1540.7	693.4
4x50	9.1	1.0	1.8	25.5	1972.8	826.5
4x70	11.0	1.1	2.0	29.6	2823.0	1153.3
4x95	12.9	1.1	2.1	33.4	3811.7	1506.5
4x120	14.5	1.2	2.3	37.0	4796.7	1880.9
4x150	16.1	1.4	2.4	41.1	5920.3	2344.1
4x185	18.0	1.6	2.6	45.5	7400.4	2919.6
4x240	20.6	1.7	2.8	51.3	9611.2	3729.8
4x300	23.0	1.8	3.0	56.4	11926.5	4574.8
4x400	26.1	2.0	3.3	63.2	15377.3	5844.9
4x500	29.5	2.2	3.5	73.8	19711.0	7455.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material
