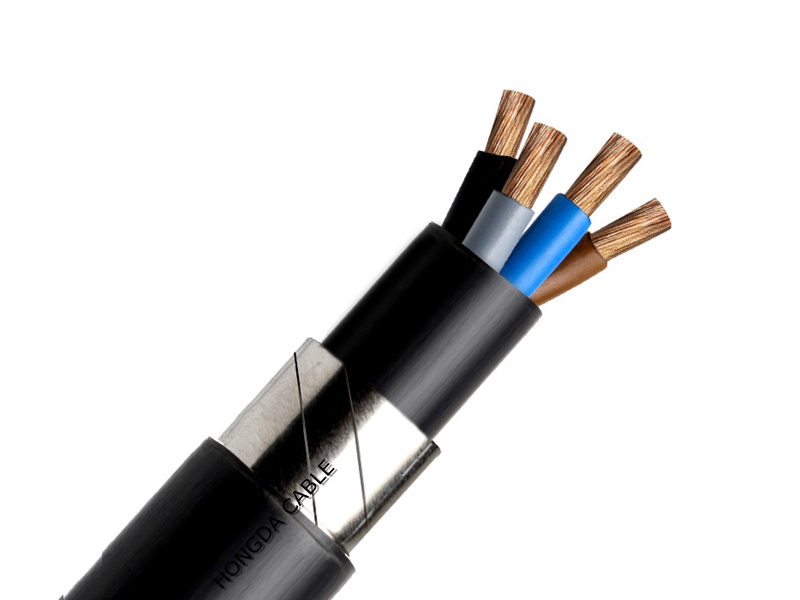

NAYBY Cable Low Voltage Aluminum Cable with Double Galvanized Steel Tape Armoured
Conductor: Aluminum
Insulation: Polyvinyl chloride PVC
Armour: Double galvanized steel tape
Sheath: Polyvinyl chloride PVC
Voltage : 0.6/1kV
Package : Export wooden drum & iron wooden drum or as customer require
Email: manager@hdcable.com.cn
|
0.6/1kV-3 core aluminum conductor PVC insulated steel tape armored PVC sheathed power cable |
||||||||
|
Nominal cross sectional area |
Insulation thickness |
Non-magnetic steel tape thickness |
Sheath thickness |
Approximate outer diameter |
Approx. |
Max.D.C resistance of conductor（20℃） |
Current carrying capacity |
|
|
mm2 |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
In Air(A) |
In Ground(A) |
|
3X2.5 |
0.8 |
0.2 |
1.8 |
14.3 |
276 |
12.1 |
- |
- |
|
3X4 |
1.0 |
0.2 |
1.8 |
16.1 |
347 |
7.41 |
- |
- |
|
3X6 |
1.0 |
0.2 |
1.8 |
17.3 |
397 |
4.61 |
- |
- |
|
3X10 |
1.0 |
0.2 |
1.8 |
19.9 |
510 |
3.08 |
38 |
54 |
|
3X16 |
1.0 |
0.2 |
1.8 |
22.3 |
634 |
1.91 |
51 |
71 |
|
3X25 |
1.2 |
0.2 |
1.8 |
25.9 |
833 |
1.2 |
66 |
92 |
|
3X35 |
1.2 |
0.2 |
1.8 |
27.2 |
961 |
0.868 |
81 |
110 |
|
3X50 |
1.4 |
0.2 |
1.9 |
31.1 |
1229 |
0.641 |
98 |
130 |
|
3X70 |
1.4 |
0.2 |
2.0 |
35.2 |
1577 |
0.443 |
120 |
160 |
|
3X95 |
1.6 |
0.5 |
2.2 |
41.3 |
2432 |
0.32 |
150 |
195 |
|
3X120 |
1.6 |
0.5 |
2.3 |
44.6 |
2824 |
0.253 |
180 |
225 |
|
3X150 |
1.8 |
0.5 |
2.5 |
49.4 |
3424 |
0.206 |
205 |
250 |
|
3X185 |
2 |
0.5 |
2.6 |
54.0 |
4045 |
0.164 |
235 |
285 |
|
3X240 |
2.2 |
0.5 |
2.8 |
60.6 |
5047 |
0.125 |
280 |
330 |
|
3X300 |
2.4 |
0.5 |
3.0 |
66.4 |
6024 |
0.1 |
320 |
370 |
|
0.6/1kV-4 core aluminum conductor PVC insulated steel tape armored PVC sheathed power cable |
||||||||
|
Nominal cross sectional area |
Insulation thickness |
Non-magnetic steel tape thickness |
Sheath thickness |
Approximate outer diameter |
Approx. |
Max.D.C resistance of conductor（20℃） |
Current carrying capacity |
|
|
mm2 |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
In Air(A) |
In Ground(A) |
|
4X2.5 |
0.8 |
0.2 |
1.8 |
14.9 |
320 |
12.1 |
- |
- |
|
4X4 |
1 |
0.2 |
1.8 |
17.2 |
396 |
7.41 |
- |
- |
|
4X6 |
1 |
0.2 |
1.8 |
18.5 |
457 |
4.61 |
- |
- |
|
4X10 |
1 |
0.2 |
1.8 |
21.5 |
597 |
3.08 |
38 |
54 |
|
4X16 |
1 |
0.2 |
1.8 |
24.1 |
747 |
1.91 |
51 |
71 |
|
4X25 |
1.2 |
0.2 |
1.8 |
28.1 |
989 |
1.2 |
66 |
92 |
|
4X35 |
1.2 |
0.2 |
1.9 |
29.8 |
1166 |
0.868 |
81 |
110 |
|
4X50 |
1.4 |
0.2 |
2.0 |
34.6 |
1537 |
0.641 |
98 |
130 |
|
4X70 |
1.4 |
0.5 |
2.2 |
40.0 |
2327 |
0.443 |
120 |
160 |
|
4X95 |
1.6 |
0.5 |
2.4 |
45.4 |
2951 |
0.32 |
150 |
195 |
|
4X120 |
1.6 |
0.5 |
2.5 |
49.5 |
3498 |
0.253 |
180 |
225 |
|
4X150 |
1.8 |
0.5 |
2.6 |
54.4 |
4191 |
0.206 |
205 |
250 |
|
4X185 |
2 |
0.5 |
2.8 |
60.0 |
5036 |
0.164 |
235 |
285 |
|
4X240 |
2.2 |
0.5 |
3.0 |
66.9 |
6229 |
0.125 |
280 |
330 |
|
4X300 |
2.4 |
0.5 |
3.2 |
73.4 |
7467 |
0.1 |
320 |
370 |
|
0.6/1kV-5 core aluminum conductor PVC insulated steel tape armored PVC sheathed power cable |
||||||||
|
Nominal cross sectional area |
Insulation thickness |
Non-magnetic steel tape thickness |
Sheath thickness |
Approximate outer diameter |
Approx. |
Max.D.C resistance of conductor（20℃） |
Current carrying capacity |
|
|
mm2 |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
In Air(A) |
In Ground(A) |
|
5X2.5 |
0.8 |
0.2 |
1.8 |
16.1 |
356 |
12.1 |
- |
- |
|
5X4 |
1 |
0.2 |
1.8 |
18.4 |
459 |
7.41 |
- |
- |
|
5X6 |
1 |
0.2 |
1.8 |
19.9 |
525 |
4.61 |
- |
- |
|
5X10 |
1 |
0.2 |
1.8 |
23.2 |
700 |
3.08 |
38 |
54 |
|
5X16 |
1 |
0.2 |
1.8 |
26.2 |
871 |
1.91 |
51 |
71 |
|
5X25 |
1.2 |
0.2 |
1.9 |
30.8 |
1174 |
1.2 |
66 |
92 |
|
5X35 |
1.2 |
0.2 |
2.0 |
32.7 |
1391 |
0.868 |
81 |
110 |
|
5X50 |
1.4 |
0.5 |
2.2 |
39.3 |
2224 |
0.641 |
98 |
130 |
|
5X70 |
1.4 |
0.5 |
2.3 |
43.9 |
2760 |
0.443 |
120 |
160 |
|
5X95 |
1.6 |
0.5 |
2.5 |
50.4 |
3574 |
0.32 |
150 |
195 |
|
5X120 |
1.6 |
0.5 |
2.6 |
54.4 |
4181 |
0.253 |
180 |
225 |
|
5X150 |
1.8 |
0.5 |
2.8 |
60.3 |
5093 |
0.206 |
205 |
250 |
|
5X185 |
2 |
0.5 |
3.0 |
66.1 |
6056 |
0.164 |
235 |
285 |
|
5X240 |
2.2 |
0.5 |
3.3 |
73.9 |
7520 |
0.125 |
280 |
330 |
|
5X300 |
2.4 |
0.5 |
3.5 |
81.5 |
9126 |
0.1 |
320 |
370 |
