YMvKf Cable Application

YMvKf cable is suitable for all types of industrial low voltage connections, urban grids, building installations, etc. This cable is fire retardant and is recommended for use in public places and hazardous industries. Its flexibility makes installation substantially easier, making it highly suitable for difficult layouts. This cable can also be used in buried installations or in tubes or outdoors without requiring additional

protection. This cable withstands damp conditions and even total submersion in water.

CONSTRUCTION :

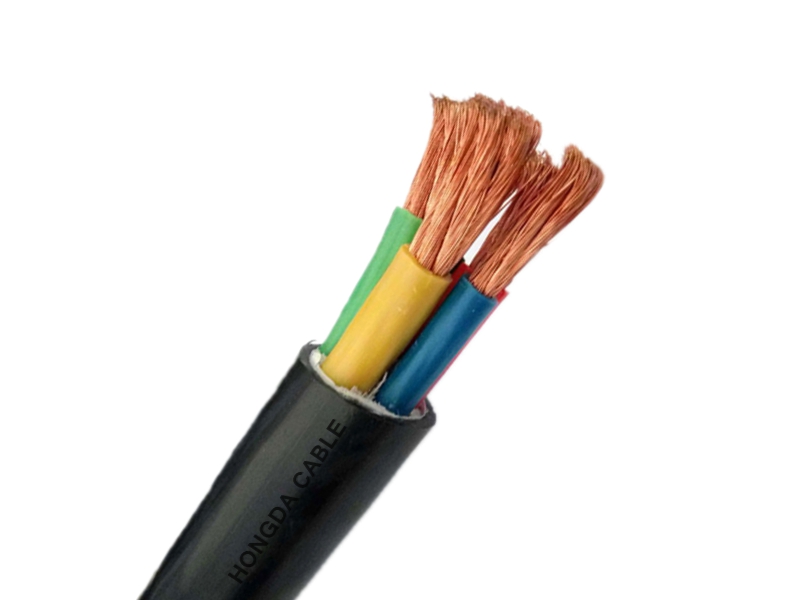

YMvKf Cable Construction

Conductor: Electrolytic annealed copper conductor, class 5 (flexible) according to EN 60228 and IEC 60228.

Insulation: Cross-linked polyethylene (XLPE) insulation type XLPE according to IEC 60502-1.
The standard identification of insulated conductors is the following:

1 x Black

2 x Blue + Brown

3 x Blue + Brown + Grey

4 G Brown + Black + Grey + Green/Yellow

5 G Brown + Black + Grey + Blue + Green/Yellow

Outer sheath: Flexible PVC outer sheath, according to IEC 60502-1. Grey colour.

CHARACTERISTICS :

YMvKf Cable Characteristics

Electrical performance: Low voltage 0,6/1kV.

Thermal performance:

Maximum service temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance:

Flame non-propagation according to EN 60332-1 and IEC 60332-1.

Reduced halogen emission. Chlorine <15%.

Reaction to fire CPR: Eca, according to EN 50575.

Mechanical performance:

Minimum bending radius: x5 cable diameter.

Impact resistance: AG2 Medium severity.

Environmental performance

Chemical & Oil resistance: Good.

UV Resistant: UNE 211605.

Installation conditions

Open Air.

Buried.

In conduit.

Other

Meter by meter marking.

Packaging Available in coils (lengths of 100 m) and drums.

PARAMETER :

DIMENSIONS & ADMISSIBLE INTENSITIES

Cross section	Diameter	Weight	Open air 30ºC	Buried 20ºC	Voltage drop
(mm2)	(mm)	(kg/km)	(A)	(A)	(V/A.km)
1x1,5	8,9	105	28	27	29,5
1x2,5	9,4	120	39	35	17,7
1x4	9,9	140	53	46	11
1x6	10,5	165	68	58	7,32
1x10	11,4	220	93	77	4,23
1x16	12,4	285	124	100	2,68
1x25	14,1	390	161	129	1,73
1x35	15	485	200	155	1,23
1x50	16,7	640	242	183	0,86
1x70	18,6	840	310	225	0,603
1x95	20,1	1.055	377	270	0,457
1x120	22,1	1.31	437	306	0,357
1x150	24,2	1.595	504	343	0,286
1x185	26,3	1.905	575	387	0,235
1x240	28,9	2.435	679	448	0,178
1x300	31,7	3.04	783	502	0,142
1x400	36	3.95	940	563	0,108
1x500	39,5	4.995	1.083	637	0,085
1x630	44,3	6.49	1.254	719	0,064
2x1,5	9,8	130	26	27	34
2x2,5	10,7	165	36	35	20,4
2x4	11,8	215	49	46	12,7
2x6	12,7	265	63	58	8,45
2x10	16,8	460	86	77	4,89
2x16	18,5	610	115	100	3,1
2x25	22	880	149	129	2
2x35	24,3	1.135	185	155	1,42
3G1,5	10,2	150	26	27	34
3G2,5	11,2	190	36	35	20,4
3G4	12,4	250	49	46	12,7
3G6	13,6	325	63	58	8,45
3G10	17,5	550	86	77	4,89
3x16	19,5	750	115	100	2,68
3x25	22,8	1.08	149	129	1,73
3x35	25,2	1.415	185	155	1,23
3x50	28,6	1.9	225	183	0,86
3x70	31,5	2.535	289	225	0,603
3x95	36,2	3.295	352	270	0,457
3x120	40,8	4.18	410	306	0,357
3x150	45,7	5.205	473	343	0,286
3x185	50,4	6.295	542	387	0,235
3x240	55,9	8.13	641	448	0,178
3x16+1x10	20,5	855	115	100	2,68
3x25+1x16	23,9	1.235	149	129	1,73
3x35+1x16	26,7	1.66	185	155	1,23
3x50+1x25	29,8	2.125	225	183	0,86
3x70+1x35	34,1	2.89	289	225	0,603
3x95+1x50	37,7	3.725	352	270	0,457
4G1,5	11	175	26	27	29,5
4G2,5	11,9	225	36	35	17,7
4G4	13,4	300	49	46	11
4G6	14,7	390	63	58	7,32
4G10	18,9	660	86	77	4,23
4G16	21,2	920	115	100	2,68
4G25	24,6	1.33	149	129	1,73
4G35	26,8	1.74	185	155	1,23
4G50	31,8	2.395	225	183	0,86
4G70	36,4	3.265	289	225	0,603
4G95	39,7	4.17	352	270	0,457
4G120	45,4	5.33	410	306	0,357
4G150	50,7	6.635	473	343	0,286
4G185	56,1	8.055	542	387	0,235
4G240	62,7	10.445	641	448	0,178
4x35+1G25	29,6	2.04	185	155	1,23
4x50+1G25	33,5	2.665	225	183	0,86
4x70+1G35	38,6	3.645	289	225	0,603
4x95+1G50	42,6	4.705	352	270	0,457
5G1,5	11,8	205	26	27	29,5
5G2,5	13,1	265	36	35	17,7
5G4	14,5	355	49	46	11
5G6	16	465	63	58	7,32
5G10	20,4	785	86	77	4,23
5G16	23	1.105	115	100	2,68
5G25	27,3	1.63	149	129	1,73
5G35	29,7	2.135	185	155	1,23
5G50	34,7	2.905	225	183	0,86
5G70	39,6	3.975	289	225	0,603
5G95	44,7	5.16	352	270	0,457
5G120	49,7	6.514	410	306	0,357
5G150	55,9	8.12	473	343	0,286
5G185	62,5	9.875	542	387	0,235
5G240	69,8	12.83	641	448	0,178
