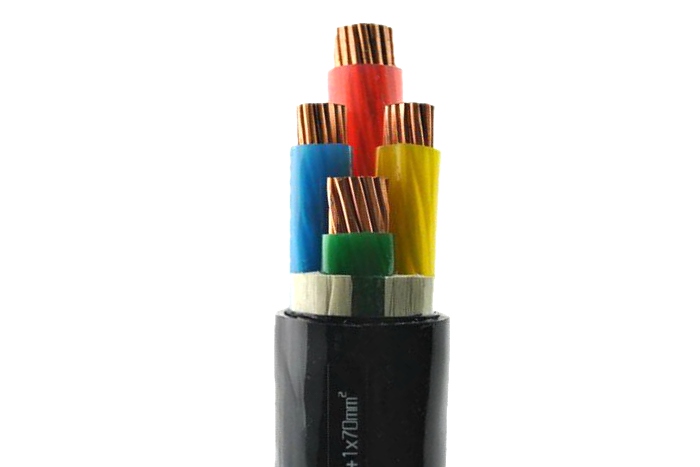

0.6/1 kV PVC Insulated Multicore Low Voltage Power Cables
Construction: Cu / Pvc / Pvc / Pvc
Standard: IEC60502-1
Max. operating temperature: +70°C
Max. curcuit temperature: 160°C
Min. bending radius: 12xD
Cable Type: YVV Cable
Email: manager@hdcable.com.cn
0,6/1 kV YVV PVC insulated Low Voltage Power Cables
| Construction | Cu / Pvc / Pvc / Pvc |
| Standard | IEC60502-1 |
| Application Area | Used as lighting and power distribution cable, installed in areas where severe mechanical stress is avoided. Can be laid in doors,out-doors,buried or in cable tranches. |
| Max. operating temperature | +70°C |
| Max. curcuit temperature | 160°C |
| Min. bending radius | 12xD |
|
Nominal Cross Section |
Overall Diameter |
Net Weight |
Conductor DC resistance at 20°C |
Current Carrying Capacity in |
|
|---|---|---|---|---|---|
|
Ground (A) |
Air (A) |
||||
|
2x1,5 re |
10,50 |
150 |
12,1 |
15 |
18,5 |
|
2x2,5 re |
11,50 |
200 |
7,41 |
20 |
25 |
|
2x4 re |
13,00 |
270 |
4,61 |
27 |
34 |
|
2x6 re |
14,00 |
310 |
3,08 |
34 |
43 |
|
2X10 rm |
15,80 |
450 |
1,83 |
46 |
60 |
|
2x16 rm |
18,00 |
640 |
1,15 |
62 |
80 |
|
2x25 rm |
21,00 |
930 |
0,727 |
80 |
101 |
|
2x35 rm |
23,00 |
1200 |
0,524 |
99 |
126 |
|
2x250 rm |
27,00 |
1600 |
0,387 |
118 |
153 |
|
2x70 rm |
30,00 |
2150 |
0,268 |
149 |
196 |
|
2x95 rm |
34,00 |
2850 |
0,193 |
179 |
238 |
|
2x120 rm |
38,00 |
3550 |
0,153 |
206 |
276 |
|
2x150 rm |
41,00 |
4300 |
0,124 |
225 |
318 |
|
2x185 rm |
46,00 |
5300 |
0,0991 |
255 |
364 |
|
2x240 rm |
52,00 |
6900 |
0,0754 |
297 |
430 |
|
3x1,5 re |
10,5 |
180 |
12,1 |
15 |
18,5 |
|
3x2,5 re |
11,5 |
230 |
7,41 |
20 |
25 |
|
3x4 re |
13,5 |
320 |
4,61 |
27 |
34 |
|
3x6 re |
14,5 |
400 |
3,08 |
34 |
43 |
|
3x10 rm |
17,5 |
570 |
1,83 |
46 |
60 |
|
3x16 rm |
19 |
800 |
1,15 |
62 |
80 |
|
3x25 rm |
23 |
1180 |
0,727 |
80 |
101 |
|
3x35 rm |
25 |
1500 |
0,524 |
99 |
126 |
|
3x50 rm |
28 |
2000 |
0,387 |
118 |
153 |
|
3x70 rm |
32 |
2750 |
0,268 |
149 |
196 |
|
3x95 rm |
37 |
3750 |
0,193 |
179 |
238 |
|
3x120 rm |
41 |
4600 |
0,153 |
206 |
276 |
|
3x150 rm |
44 |
5600 |
0,124 |
225 |
318 |
|
3x185 rm |
49 |
7000 |
0,0991 |
255 |
364 |
|
2x240 rm |
56 |
8950 |
0,0754 |
297 |
430 |
|
3x300 rm |
62 |
11350 |
0,0601 |
339 |
497 |
|
3x400 rm |
69 |
14350 |
0,047 |
410 |
530 |
|
3x16+10 |
21,00 |
950 |
1,15/1,83 |
62 |
80 |
|
3x25+16 |
25,00 |
1400 |
0,727/1,15 |
80 |
101 |
|
3x35+16 |
27,00 |
1700 |
0,524/1,15 |
99 |
126 |
|
3x50+25 |
31,00 |
2350 |
0,387/0,727 |
118 |
153 |
|
3x70+35 |
35,00 |
3150 |
0,268/0,524 |
149 |
196 |
|
3x95+50 |
42,00 |
4350 |
0,193/0,387 |
179 |
238 |
|
3x120+70 |
46,00 |
5400 |
0,153/0,268 |
206 |
276 |
|
3x150+70 |
49,00 |
6400 |
0,124/0,268 |
225 |
318 |
|
3x185+95 |
55,00 |
8050 |
0,0991/0,193 |
255 |
364 |
|
3x240+120 |
60,00 |
10500 |
0,0754/0,153 |
297 |
430 |
|
3x300+150 |
66,00 |
13000 |
0,0601/0,124 |
339 |
497 |
|
3x400+185 |
74,00 |
16300 |
0,0470/0,0991 |
410 |
530 |
|
4x1,5 re |
11,50 |
210 |
12,1 |
15 |
18,5 |
|
4x2,5 re |
13,00 |
270 |
7,41 |
20 |
25 |
|
4x4 re |
15,00 |
385 |
4,61 |
27 |
34 |
|
4x6 re |
16 |
480 |
3,08 |
34 |
43 |
|
4x10 rm |
19 |
700 |
1,83 |
46 |
60 |
|
4x16 rm |
21,5 |
1000 |
1,15 |
62 |
80 |
|
4x25 rm |
25 |
1500 |
0,727 |
80 |
101 |
|
4x35 rm |
27 |
2000 |
0,524 |
99 |
126 |
|
4x50 rm |
32 |
2600 |
0,387 |
118 |
153 |
|
4x70 rm |
37 |
3600 |
0,268 |
149 |
196 |
|
4x95 rm |
42 |
4800 |
0,193 |
179 |
238 |
|
4x120 rm |
46 |
5900 |
0,153 |
206 |
276 |
|
4x15 rm |
51 |
7200 |
0,124 |
225 |
318 |
|
4x185 rm |
55 |
8900 |
0,0991 |
255 |
364 |
|
4x240 rm |
63 |
11600 |
0,0754 |
297 |
430 |
|
4x300 rm |
70 |
14500 |
0,0601 |
339 |
497 |
|
4x300 rm |
78 |
18400 |
0,047 |
410 |
530 |
|
5x1,5 |
13 |
250 |
12,1 |
19 |
14,5 |
|
7x1,5 |
14 |
330 |
12,1 |
16 |
12,5 |
|
10x1,5 |
17 |
430 |
12,1 |
13,5 |
10,5 |
|
12x1,5 |
17,50 |
500 |
12,1 |
12 |
8,5 |
|
14x1,5 |
18 |
550 |
12,1 |
12 |
9,5 |
|
19x1,5 |
20 |
650 |
12,1 |
11 |
9 |
|
21x1,5 |
21 |
700 |
12,1 |
9,5 |
8 |
|
24x1,5 |
22,50 |
850 |
12,1 |
9,5 |
8 |
|
30x1,5 |
25 |
1050 |
12,1 |
8 |
7 |
|
40x1,5 |
27 |
1220 |
12,1 |
8 |
7 |
|
48x1,5 |
30 |
1450 |
12,1 |
7 |
6 |
|
61x1,5 |
32 |
1800 |
12,1 |
7 |
6 |
|
5x2,5 |
14 |
350 |
7,41 |
25 |
19,5 |
|
7x2,5 |
15 |
400 |
7,41 |
21,5 |
17 |
|
10x2,5 |
18,50 |
620 |
7,41 |
18 |
14,5 |
|
12x2,5 |
19 |
670 |
7,41 |
16 |
13 |
|
14x2,5 |
20 |
750 |
7,41 |
16 |
13 |
|
19x2,5 |
22 |
950 |
7,41 |
14,5 |
11,5 |
|
21x2,5 |
23,6 |
1050 |
7,41 |
12,5 |
10,5 |
|
24x2,5 |
26 |
1250 |
7,41 |
12,5 |
10,5 |
|
30x2,5 |
28 |
1500 |
7,41 |
11 |
9 |
|
40x2,5 |
30 |
1700 |
7,41 |
10 |
9 |
|
48x2,5 |
33 |
2000 |
7,41 |
10 |
8 |
|
61x2,5 |
36 |
2500 |
7,41 |
9 |
8 |
